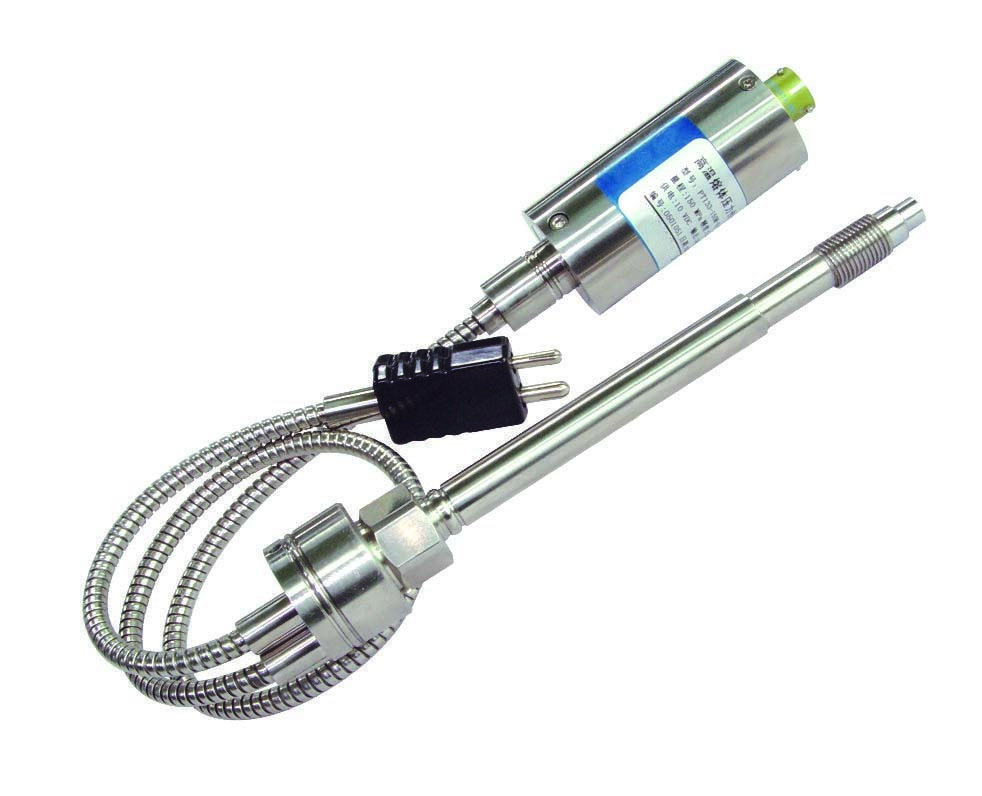

Melt Pressure Transducer, Pressure Sensor
Model: PT112
Insulated by rigid or flex tube with thermocouple, this kind of melt pressure transducer can measure pressure and temperature at the same time
Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other special occasions
|
Parameter |
Value |
|
Measure Range |
0-150Mpa |
|
Overload Pressure |
1.5×RP(rated pressure) |
|
Broken Pressure |
3×RP(rated pressure) |
|
Accuracy |
±0.3, ±0.5, ±1%F.S |
|
Stability |
Typical ±0.5%F.S, Max ±1%F.S |
|
Operate Temperature |
－10℃~400℃ |
|
Wire |
2 Wires/3 wires |
|
Output Signal |
2mv/v, 3.3mv/v, 4~20mA/0.5-4.5v |
|
Power Supply |
12~30Vdc |
|
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
|
Insulation |
＞2000M @100V |
|
Electric Connect |
5 pins or 6 pins connector |
|
Thread. Connect |
1/2-20UNF or requested by customer |
|
Response Time |
10ms |
|
Length of Rigid Stem |
2.36", 60mm, or 6", 152mm |
|
Length of Flexible Tube |
18", 460mm |
Customization: Melt pressure sensor outlet/ inlet, cable length
