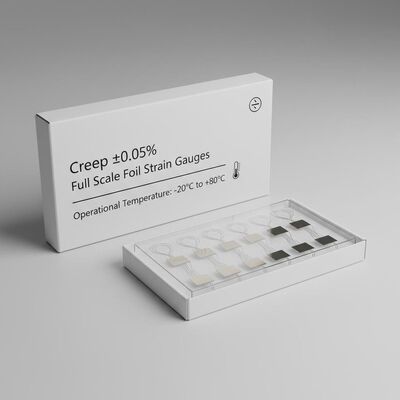

The Foil Strain Gauge is a highly precise and reliable sensor designed for accurate measurement of strain in various applications. Known for its exceptional performance characteristics, this product is widely used in load cell sensors and tension measuring systems. Engineered with advanced materials and cutting-edge technology, the Foil Strain Gauge offers outstanding sensitivity and stability, making it an ideal choice for both industrial and research applications.
One of the key features of this Foil Strain Gauge is its customization service. Understanding that different applications require specific configurations, manufacturers offer tailored solutions to meet unique measurement needs. Whether you require a Half Bridge Strain Gauge or a Full Bridge Strain Gauge configuration, the product can be customized accordingly. This flexibility ensures that users get the best possible performance and integration with their existing systems, enhancing overall measurement accuracy and efficiency.
In terms of performance, the Foil Strain Gauge exhibits remarkably low hysteresis, with a value of ±0.05% Full Scale. This means that the sensor provides consistent and repeatable measurements even after multiple load cycles, which is crucial for applications that demand high precision over time. The minimal hysteresis ensures that readings are not affected by previous strain conditions, enabling reliable data collection and analysis.
Another important attribute of this strain gauge is its excellent creep performance, also rated at ±0.05% Full Scale. Creep refers to the gradual change in output under a constant load over time, and low creep values indicate superior stability in long-term measurements. This characteristic is particularly important in load cell sensors and tension measuring devices where continuous monitoring and long-term accuracy are essential.
The operational temperature range of the Foil Strain Gauge is from -20℃ to +80℃, allowing it to function effectively in a variety of environmental conditions. This wide temperature tolerance makes it suitable for use in industrial settings where temperature fluctuations are common. Whether it is installed in a manufacturing plant, structural monitoring system, or testing laboratory, the Foil Strain Gauge maintains its performance without degradation due to temperature changes.
Strain Gauges, including Half Bridge Strain Gauges and Full Bridge Strain Gauge types, are critical components in measuring mechanical deformation. The Foil Strain Gauge’s design ensures that it can be easily integrated into these systems, providing a reliable method to convert mechanical strain into an electrical signal. This conversion is vital for monitoring stress, detecting structural weaknesses, and performing quality control in various engineering applications.
Furthermore, the product’s foil construction offers advantages such as high sensitivity, low noise, and excellent linearity. This makes it suitable for delicate measurements where precision is paramount. The foil strain gauge is also lightweight and durable, capable of withstanding harsh operating environments without compromising its structural integrity or measurement accuracy.
In summary, the Foil Strain Gauge stands out as a versatile and high-performance sensor for strain measurement needs. Its customizable options, including Half Bridge Strain Gauges and Full Bridge Strain Gauge configurations, cater to a wide range of applications. With low hysteresis and creep values of ±0.05% Full Scale, it guarantees reliable and stable measurements over time. Its operational temperature range of -20℃ to +80℃ ensures adaptability to various environments. Whether used in load cell sensors or tension measuring devices, this strain gauge delivers exceptional accuracy and durability, making it an indispensable tool for engineers and technicians seeking precise strain measurement solutions.
| Model | HA Series |
| Measurement Range | 0-1000 Microstrain |
| Working Temperature | －20～＋80℃ |
| Operational Temperature | －20～＋80℃ |
| Carrier Material | Phenolic Aldehyde / Polyimide / Epoxy |
| Material | Metal Foil |
| Creep | ±0.05% Full Scale |
| Hysteresis | ±0.05% Full Scale |
| Feature | Micro Pressure Sensor |
| Service | Customized |
The Top Sensor BF-350 series Foil Strain Gauges, originating from China, are widely recognized for their precision and reliability in various industrial and research applications. These Half Bridge Strain Gauges are designed with a metal foil material that ensures excellent durability and sensitivity, making them ideal for measuring micro pressure changes with an outstanding hysteresis of ±0.05% full scale. The HA Series micro pressure sensors within this product line offer customized solutions to meet specific client requirements, supporting a diverse range of application occasions and scenarios.
Foil Strain Gauges from the BF-350 series are commonly used in structural health monitoring where accurate strain measurement is critical. For example, in civil engineering projects, these gauges are applied to monitor stress and strain in bridges, buildings, and other infrastructures, ensuring safety and longevity. Their high sensitivity and stable performance make them suitable for detecting subtle deformations in materials over time.
In the manufacturing sector, Half Bridge Strain Gauges are essential for quality control and machinery maintenance. They are applied to monitor strain in metal components, helping engineers to detect early signs of fatigue or failure in mechanical parts. This proactive approach aids in reducing downtime and increasing operational efficiency.
The aerospace and automotive industries also benefit greatly from the Top Sensor Foil Strain Gauges. These sensors are used in testing and development phases to measure stress and strain on aircraft wings, fuselage, and automotive frames under various load conditions. Their small size and high accuracy enable precise data collection, which is crucial for design optimization and safety compliance.
Additionally, research institutions utilize these metal foil strain gauges to conduct experiments involving material testing and biomechanics. The customized service offered by Top Sensor allows researchers to tailor the Foil Strain Gauges to their specific experimental setups, ensuring accurate and reliable data acquisition.
With a supply ability of 10,000pcs each week and a minimum order quantity of 50pcs, Top Sensor ensures timely delivery within 3 weeks, supported by payment terms of T.T 100% in advance. This makes the BF-350 series Foil Strain Gauges a dependable choice for businesses and researchers seeking high-quality strain measurement solutions.
